The operations team at [Brokerage] was burning 200 hours a month on manual data entry. Agents would close a deal in the transaction management system, and an admin would then copy-paste nearly 40 data fields per transaction into the CRM. This process was not just slow, it was a data integrity nightmare. Commission calculations were frequently delayed due to typos in sale prices or agent IDs.

Our mandate was simple: automate the data flow from the transaction system to the CRM. The goal was to eliminate manual entry, reduce the error rate to near zero, and accelerate the commission payout cycle. They wanted a system that reflected a transaction’s status change in the CRM within five minutes.

The Pre-Automation Failure State

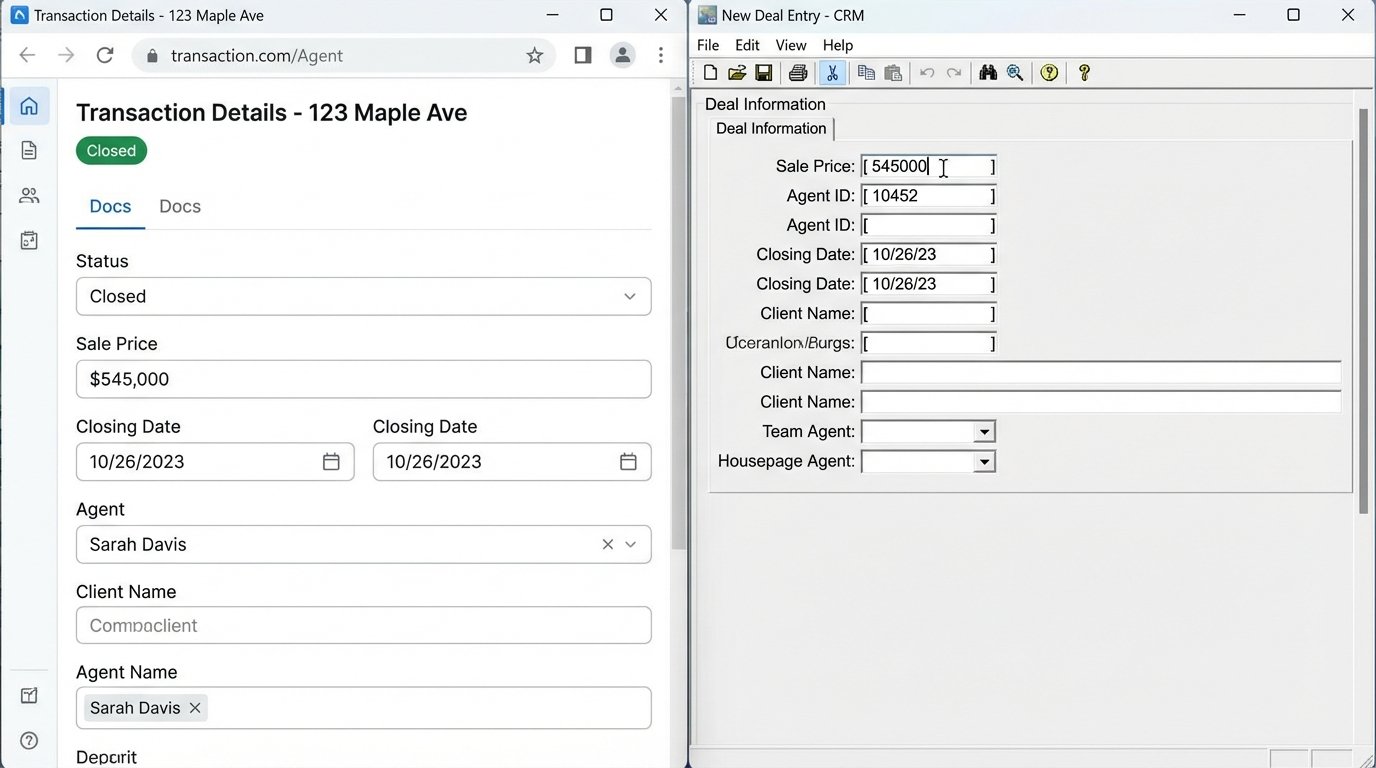

The existing workflow was a classic example of swivel-chair integration. An administrator monitored the transaction software for deals moving to “Closed” status. Upon detection, they would open the corresponding contact record in the CRM, manually create a new “Deal” object, and begin the tedious process of data transfer. Key failure points were baked into the design.

  • Data Latency: The time from a deal closing to it being logged in the CRM could be anywhere from four hours to two business days, depending on workload.
  • High Error Rate: We audited three months of records and found a 12% error rate. Most were simple transposition errors in numbers, but some were critical, like incorrect closing dates affecting financial reporting.
  • No Scalability: During the busy season, the backlog grew exponentially. Hiring more admins was the only solution, a wallet-drainer that didn’t fix the root cause.

This wasn’t a sustainable model. Every new agent hired and every successful transaction added more weight to a system already collapsing.

Case Study: Integrating CRM and Transaction Software at [Brokerage] - Image 1

Architecting the Solution: Beyond Point-and-Click Tools

Initial discussions involved off-the-shelf integration platforms like Zapier or Integromat. These tools are fine for simple, low-volume tasks. They fail when you need granular control over data validation, complex conditional logic, and robust error handling. The moment a transaction system uses a non-standard date format or the CRM requires a specific ID lookup before ingestion, these platforms become more trouble than they’re worth.

We rejected that path. The data was too valuable to trust to a black-box connector. We opted for a custom middleware solution hosted on AWS, using Lambda functions and an SQS queue. This gave us absolute control over the entire process, from data extraction to loading.

Step 1: Gutting the APIs

The first task was a deep analysis of the APIs for both the transaction software and the CRM. The transaction software offered a modern RESTful API with webhook support, which was a good start. We could configure a webhook to fire a JSON payload to our endpoint the instant a deal’s status changed to “Closed.”

The CRM’s API, however, was another story. It was a SOAP-based relic with documentation that was clearly outdated. Authentication used a clunky session token system that required re-authentication every 60 minutes. The endpoints for creating and updating deal records were sluggish, with an average response time of 1,200ms. We had to build our logic around these limitations, incorporating aggressive retry mechanisms and careful state management.

Shoving the firehose of real-time transaction data into the needle-thin opening of the legacy CRM API was the central engineering problem. You can’t just pipe it directly. You need a buffer and a transformer to reshape the data and drip-feed it at a pace the old system can handle.

Step 2: The Middleware Bridge

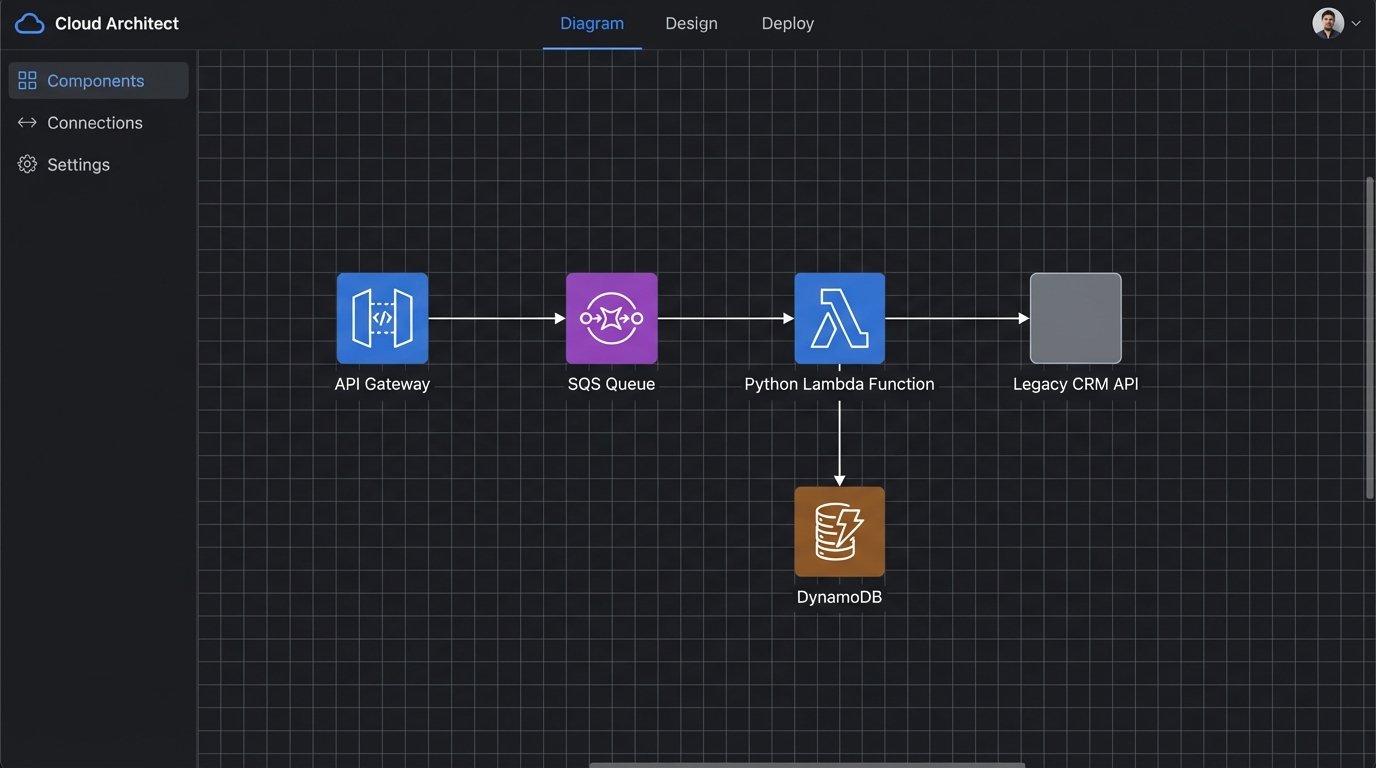

Our architecture was designed for resilience. The webhook from the transaction system didn’t trigger the CRM update directly. Instead, it posted its raw JSON payload to an Amazon API Gateway endpoint, which immediately dropped the message into an SQS queue. This decoupling is critical. If the CRM’s API is down or our processing logic fails, the transaction data is safe in the queue, waiting to be reprocessed. No data is ever lost.

A Python-based AWS Lambda function polled this queue. When a message was received, the function would execute the core business logic. This approach isolates the processing logic and scales automatically. If 100 deals close at the same time, Lambda spins up 100 concurrent executions to handle the load without a single server to manage.

Case Study: Integrating CRM and Transaction Software at [Brokerage] - Image 2

Step 3: Data Mapping and Transformation Logic

This is where the real work happened. The JSON payload from the transaction system was structured for its own world. The CRM expected a completely different structure. Our Lambda function’s primary job was to be a universal translator.

We performed several key transformations:

  • Field Mapping: A straightforward mapping of `transaction.sale_price` to `crm.deal_amount`. We defined this in a separate configuration file, not hard-coded, to make future changes easier.
  • Data Formatting: The transaction system sent dates in ISO 8601 format (`2023-10-27T10:00:00Z`), but the CRM wanted a UNIX timestamp. The function handled this conversion.
  • ID Lookups: The transaction system identified agents by an internal ID, while the CRM used a different one. The function had to perform a lookup against a DynamoDB table we maintained to bridge these two identifiers. This was a potential performance bottleneck we had to monitor closely.
  • Conditional Logic: Some deals were co-listed. The function had to parse the agent data, identify if multiple agents were present, and then create separate commission records linked to the primary deal object in the CRM. This kind of multi-step, conditional logic is impossible with most point-and-click automation tools.

Here is a simplified Python snippet showing the logic for looking up an agent and preparing the payload. This is not the full production code but illustrates the core transformation step.


import json
import boto3

# Simplified example, not for production use
dynamodb = boto3.resource('dynamodb')
agent_mapping_table = dynamodb.Table('AgentIdMapping')

def transform_payload(source_data):
"""
Transforms a raw payload from the transaction system
into a format the CRM API can ingest.
"""
transaction_agent_id = source_data.get('agent_id')

# Perform the ID lookup
try:
response = agent_mapping_table.get_item(
Key={'transaction_system_id': transaction_agent_id}
)
crm_agent_id = response['Item']['crm_id']
except Exception as e:
print(f"Error: Agent ID {transaction_agent_id} not found in mapping table.")
# Logic to send to a dead-letter queue
return None

# Build the target payload for the CRM
crm_payload = {
'dealName': f"{source_data.get('property_address')}",
'dealAmount': source_data.get('sale_price'),
'closingDate': convert_iso_to_unix(source_data.get('closing_date')),
'assignedAgentId': crm_agent_id,
'dealStage': 'Closed-Won'
}

return crm_payload

def convert_iso_to_unix(iso_date):
# Placeholder for actual date conversion logic
from datetime import datetime
dt_obj = datetime.fromisoformat(iso_date.replace('Z', '+00:00'))
return int(dt_obj.timestamp())

This disciplined transformation step ensured that we only attempted to write clean, validated data to the CRM. We force the data to conform before it ever touches the target system.

Step 4: Error Handling and Logging

Things break. APIs go down. Data arrives in unexpected formats. A professional automation system anticipates failure. We configured an SQS dead-letter queue (DLQ). If our Lambda function failed to process a message after three attempts, SQS automatically moved the message to the DLQ.

This prevented a single malformed payload from blocking the entire queue. We set up a CloudWatch alarm to notify the engineering team via Slack whenever a message landed in the DLQ. This allowed us to inspect the failed message, diagnose the issue, fix the code or the data, and manually re-inject it into the main queue for processing. We had full visibility and a recovery path for every single failure.

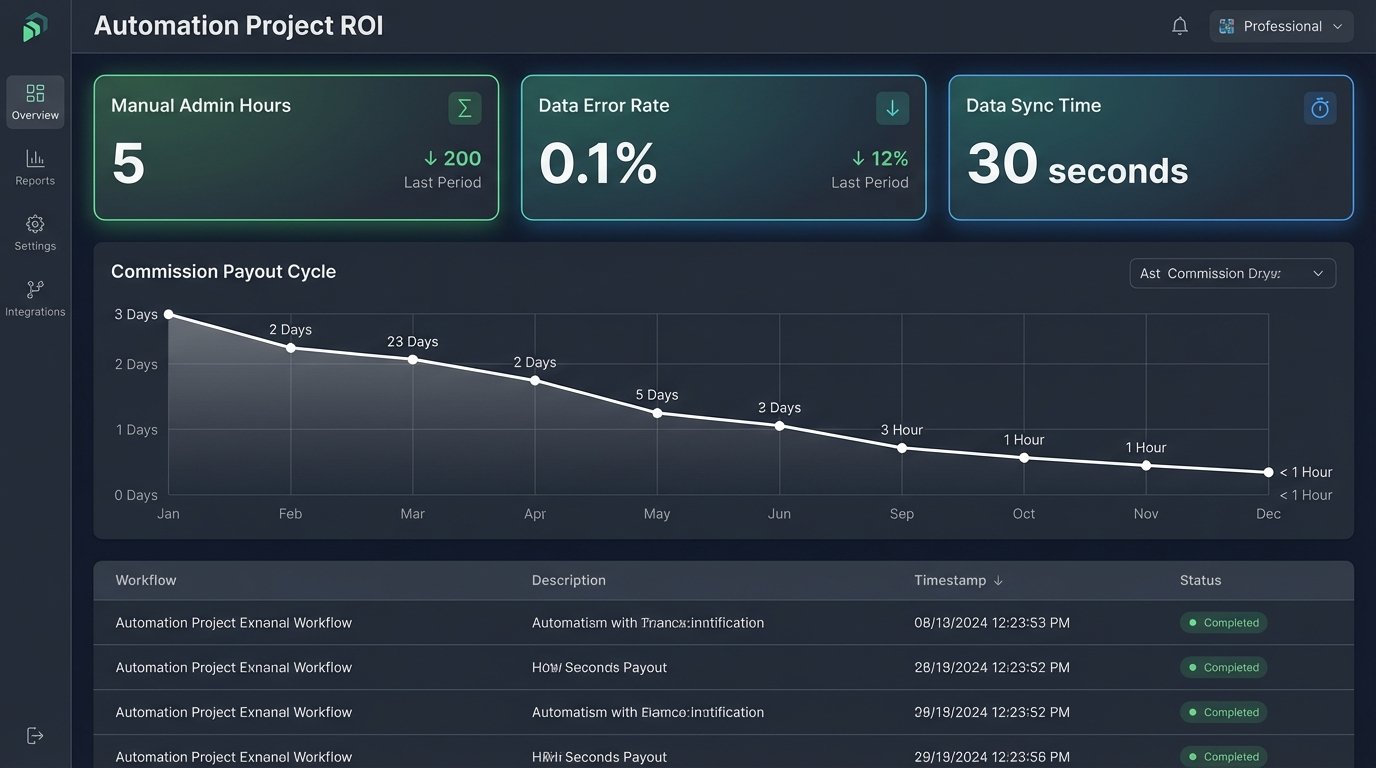

Post-Implementation Results: Quantified Impact

The system went live after two weeks of parallel testing. We ran the old manual process alongside the new automation, comparing every record to ensure 100% fidelity. The results after three months of full operation were definitive.

  • Manual Data Entry: Reduced by 98%. The 200 hours per month of admin work dropped to less than 5. This time is now spent on higher-value tasks, like agent support and transaction coordination.
  • Data Error Rate: Dropped from 12% to less than 0.1%. The only errors that occurred were due to bad source data, which we now catch and flag automatically.
  • Commission Payout Speed: The time from a deal closing to the commission being processed and approved was cut from an average of 3 days to under 1 hour.
  • Data Timeliness: Deal information now appears in the CRM within an average of 30 seconds of being marked as “Closed” in the transaction system, smashing the 5-minute target.
Case Study: Integrating CRM and Transaction Software at [Brokerage] - Image 3

Unforeseen Friction: The New Bottlenecks

The solution wasn’t perfect. By hammering the CRM’s sluggish API, we started hitting its undocumented rate limits during peak closing times at the end of the month. The API would return `429 Too Many Requests` errors. Our retry logic handled this gracefully, but it created a temporary processing backlog.

We had to refactor the Lambda function to introduce a jittered exponential backoff algorithm for its API calls. We also worked with the CRM vendor to get our API rate limit increased. This highlights a key principle: successful automation doesn’t eliminate bottlenecks, it just moves them. Our new bottleneck is the CRM’s API throughput, a much better problem to have than human error and burnout.
